High Power BLDC MOSFET Controller with Integrated Hall Commutation

• High current 3-phase gate drive for N-channel MOSFETs
• AEC-Q100 Qualified
• Synchronous rectification
• Cross-conduction protection
• Charge pump and top-off charge pump for 100% PWM
• Integrated commutation decoder logic
•  Operation over 5.5 to 50 V supply voltage range
• Extensive diagnostics output
• Provides +5 V Hall sensor power
• Low-current sleep mode

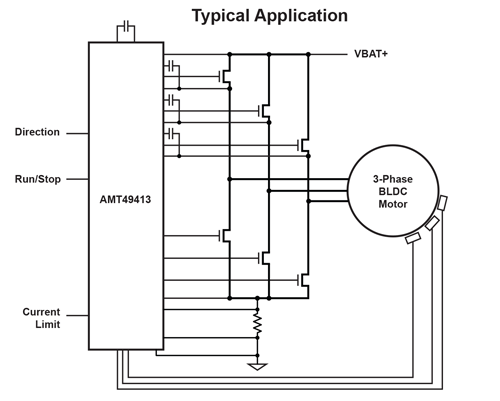

Typical Applications

• Electric lawn mower
• Battery powered drill
