Top Features
- Wide, 2.7 to 15 V input voltage operating range

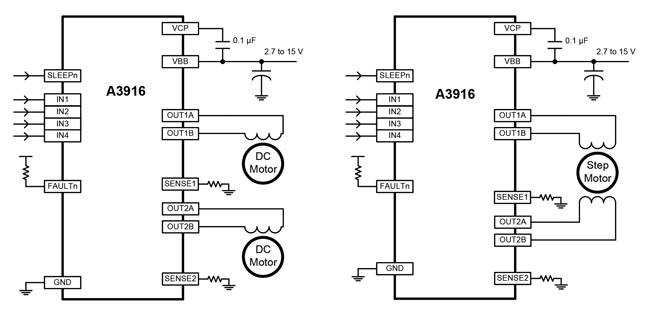

- Dual DMOS full-bridges: drive two DC motors or one stepper motor
- Low RDS(ON) outputs
- Synchronous rectification for reduced power dissipation
- Low-current sleep mode
- Overcurrent protection
- Internal UVLO and thermal shutdown circuitry
- Integrated charge pump
- Pin-to-pin compatible with A3906
