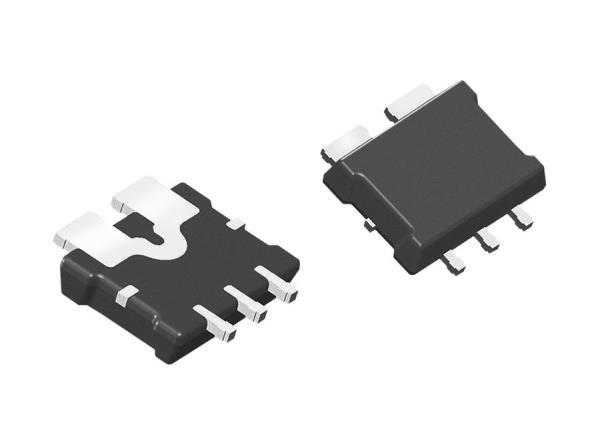

High-Precision Linear Hall-Effect-Based Current Sensor IC With 200 μΩ Current Conductor
ACS72981
Product Details
Product Details
Top Features
- High-bandwidth 250 kHz analog output
- Less than 2 μs output response time
- 3.3 V and 5 V supply operation
- Ultralow power loss: 200 μΩ internal conductor resistance
- Industry-leading noise performance and increased
- Greatly improved total output error through digitally programmed and compensated gain and offset over the full operating temperature range
- Small package size, with easy mounting capability
- Monolithic Hall IC for high reliability
- Output voltage proportional to AC or DC currents
- Factory-trimmed for accuracy
- Extremely stable zero amp output offset voltage over temperature and lifetime
