Allegro's XtremeSense™ TMR technology
Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.
Product Details
Product Details
Top Features

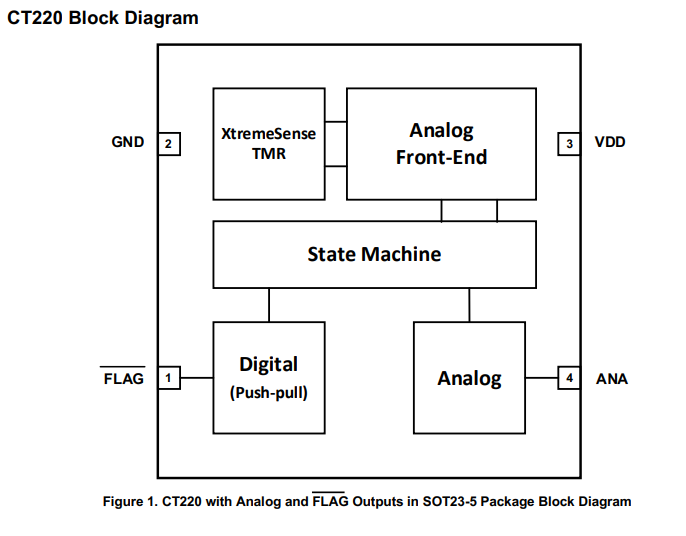

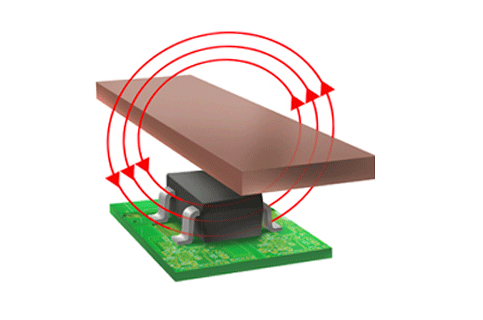

- AC or DC Contactless Current Sensing Range: Up to 1,000 A
- Resolution of 5 mA
- Inherently High Isolation
- Magnetic Field (Current) Range:
- ±1.5 mT
- ±5.0 mT
- ±10.0 mT
- ±15.0 mT
- Stable Performance over Temperature
- Supply Current: ~1.2 mA
- FLAG Pin to Indicate 90% and 10% of Full Field Range
- Active LOW Digital Output (Push-pull)
- Supply Voltage: 2.7 V to 5.5 V
- Operating Temperature Ranges:
- Industrial: -40°C to +85°C
- Extended Industrial: -40°C to +125°C
- Package: 5-Lead SOT23
Part Number Specifications and Availability
Design Tools
Technical Documentation
Application Note
Calibration Guide for CT110, CT220 and CT450
Application Note
What is XtremeSense TMR
Application Note
CT220 Reference Design for Contactless Current Sensing
Application Note
Reducing the Influence of External Fields and Crosstalk for Contactless Current Sensing
Application Note
Glossary of Isolation-Related Terms for Integrated Current Sensors
Brochure
The Future of Sensing: XtremeSense™ TMR Technology
Guide
CT220RMV-IS5 EVB222-15 Evaluation Board User Guide
Guide
CT220BMV-IS5 BB-1.5 Evaluation Board User Guide
Guide
CT220BMV-IS5 EVB222-1.5 Evaluation Board User Guide
Guide
CT220RMV-IS5 PT-15 Evaluation Board User Guide
Guide
CT220RMV-IS5 BB-15 Evaluation Board User Guide
Guide
