Our 400 kHz ACS37002 family of sensors is cool under heavy workloads, with a compact, low power loss package that keeps temperatures down and can extend the life of a power system. These current sensors hit the right balance of high speed, high accuracy, and stability over temperature, making switched-mode power designs greener and more efficient—leading technology and the world to a more sustainable future.
Product Details
Product Details
Top Features
- Wide operating bandwidth 400 kHz

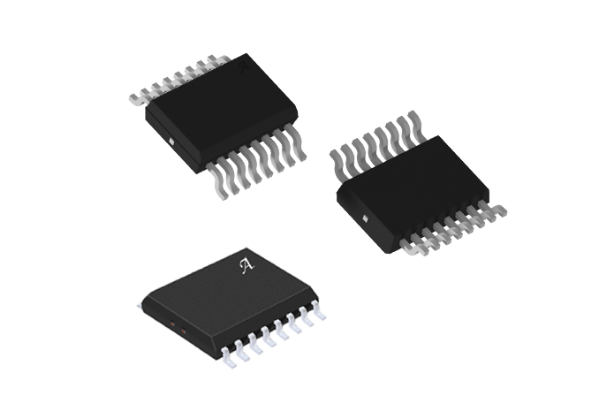

- Internal conductor resistance as low as 0.27 mΩ (MC package)
- 1% Sensitivity error from -40 to 125ºC (KMA version)
- Pin-selectable Gain Options (4)
- Fast over-current detection 1.5 µs max response time
Part Number Specifications and Availability
