Top Features
- ±1.5% sensitivity error across temperature

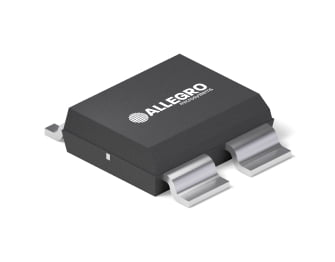

- Fused-lead SOIC-6 package supports 840 VRMS basic isolation and 420 VRMS reinforced isolation
- Non-ratiometric operation with VREF output for enhanced accuracy in noisy environments (ACS37010)

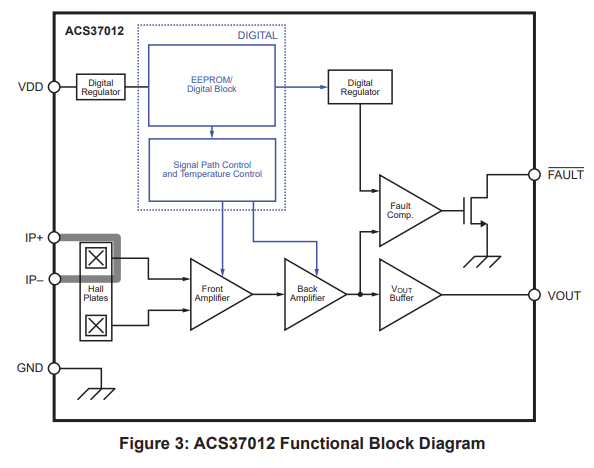

- Fast logic alert fault output pin with factory pre-programmed trip point provides overcurrent or short-circuit detection and enhanced system protection (ACS37012)
- 0.68 mΩ internal primary conductor resistance for better power efficiency
