Allegro's XtremeSense™ TMR technology
Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.
Product Details
Product Details
Top Features

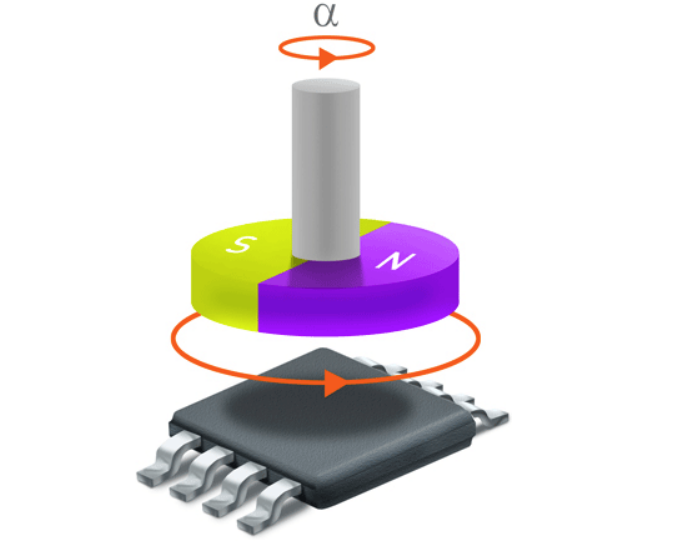

- Contactless Angle Measurement from 0° to 360°
- Angular Error less than 0.30° (After Compensation)

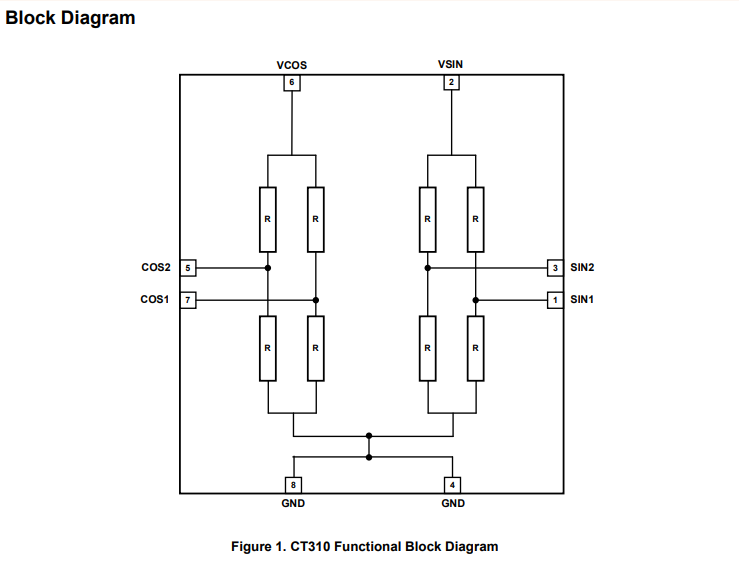

- Dual Full-Bridge Resistor Network
- Operating Magnetic Field: 25 mT to 90 mT
- Stable Magnetic Performance Over Temperature
- Differential Outputs for SIN and COS Axes
- Wide Operating Temperature Range
- Industrial: -40°C to +85°C
- Extended Industrial: -40°C to +125°C
- Full: -40°C to +150°C

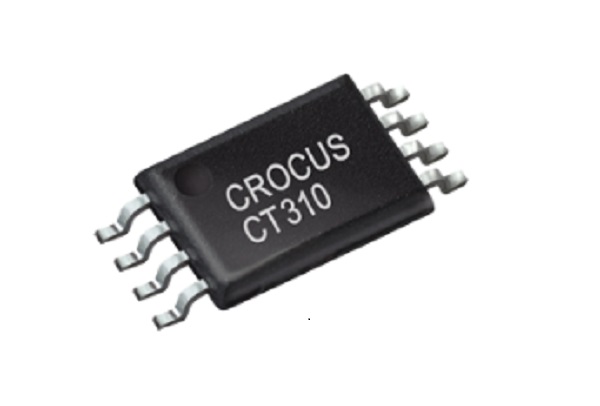

- Package Options:
- 8-lead TSSOP
- 8-lead DFN, 2.00 x 2.00 x 0.45 mm
- KGD (Known Good Die) in Wafer Form
