Vibration-Tolerant Hall-Effect Transmission Speed and Direction Gear Tooth Sensor IC
ATS19520
Product Details
Product Details
Top Features
- Differential Hall-effect sensor measures ferrous targets with inherent stray field immunity
- SolidSpeed Digital Architecture™ provides robust, adaptive performance with advanced algorithms that provide vibration immunity over the full target pitch

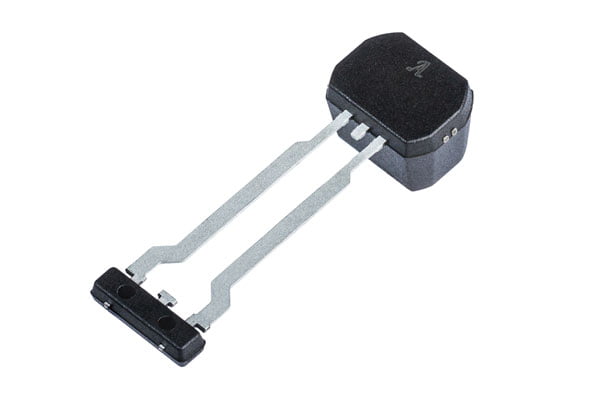

- Integrated solution includes a back-bias magnet and capacitor in a single overmolded package
- ISO 26262:2011 ASIL B with integrated diagnostics and certified safety design process (pending assessment)
- Two-wire current source output pulse-width protocol supporting speed, direction, and ASIL error reporting
- EEPROM enables factory traceability
