エンターテインメントとゲーム機器
ゲーマーは勝つことを望みます。 したがって、ゲームのトレンドが、高精度で反応性のよいジョイスティック、コントローラー、キーボードに対する欲求を示しているのは驚くことではありません。 Allegro のセンサーを搭載すれば、ジョイスティックで全方向に飽和のない応答性が得られます。 当社は、比類ないスティック トラッキング精度を備えたさまざまな 3 軸 (x、y、z) ポジション センサーを提供しています。 センサーの高い直線性と高速通信により、最高のユーザー エクスペリエンスが可能になります。 プッシュ ボタンやしゃがむ動作の機能も使用できます。
下のサブシステムを選択して、関連製品を表示してください。
選択およびソリューション ガイド
Allegro 製品選択ガイド
Documentation & Resources
Application Note
Joystick with Allegro Position Sensor IC
Joysticks are widely used human-machine interfaces (HMI) that simultaneously report information on direction and amplitude. This document explains how to implement a 2D or 3D magnetic sensor to obtain a joystick with well-defined behavior.
Application Note
PCB Ground Plane Optimization for Coreless Current Sensor Applications
AN296277 - This application note provides guidelines on how a PCB ground plane around the sensor location should be designed to achieve optimum performances.
Application Note
Non-Contact Based Controller Solutions
AN296227 - Implementing controller functions through non-contact solutions provides both performance and reliability advantages over typical contact-based input methods.
Application Note

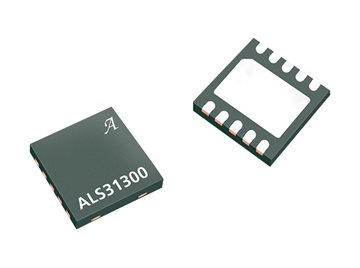

Advanced Power Management Using the ALS31300 and ALS31313 3D Hall-Effect Sensor ICs with I2C Output
AN296144 - This application note discusses the unique and advanced low power modes available on the ALS31300 and ALS31313 3D Linear Hall-Effect Sensor ICs with I2C output available from Allegro MicroSystems.
