The AHV85000 and AHV85040 is a dual chipset that offers a flexible isolated gate drive for GaN FETs with the benefits of Power-Thru technology. This simplifies system design, reduces EMI, and supports driving a floating switch in various power applications.

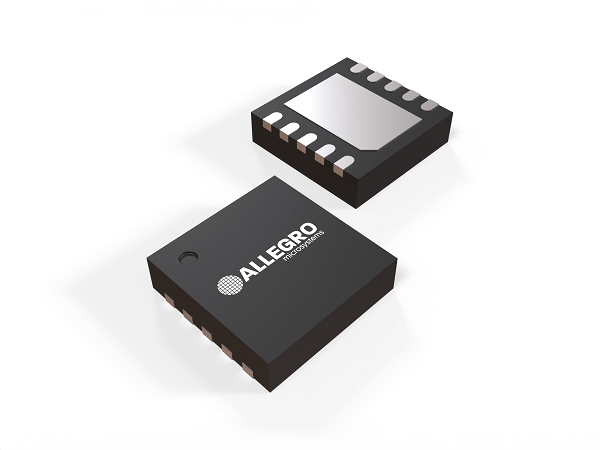

Product Details
Product Details

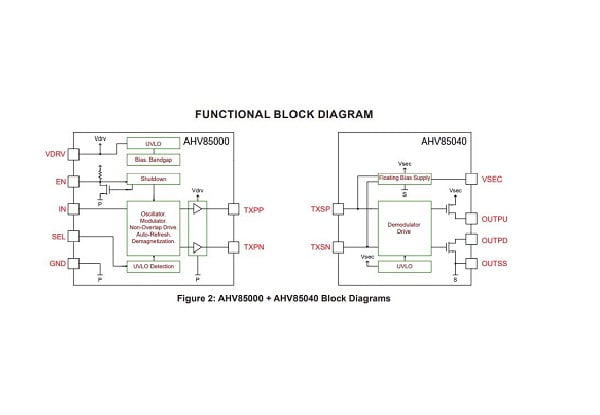

Top Features
- Dual chipset transmits both PWM signal & bias power through a single external isolation transformer
- No high-side bootstrap
- No external secondary-side bias supply
- 50 ns propagation delay (with recommended transformers)
- Separate drive output pins: pull-up (2.8 Ω) and pull-down (1.0 Ω)
- Supply voltage 7 V < VDRV < 13.2 V
- Undervoltage lockout on primary VDRV and secondary VSEC
- Enable pin with fast response
- Continuous ON capability—no need to recycle IN or recharge bootstrap capacitor
- CMTI > 100 V/ns dv/dt immunity (with recommended transformers)
- Creepage distance > 4 or 8 mm (with recommended transformers)
