APM81815 is a high-performing DC-DC regulator designed for 48V systems that has a very small footprint, low overall system cost, and superior EMI performance.
Product Details
Product Details
Top Features
- VIN operating range: 5 to 72 V
- 1.5A continuous output current
- Integrated Vin and Boot Cap to reduce component count and achieve ultra-low EMI

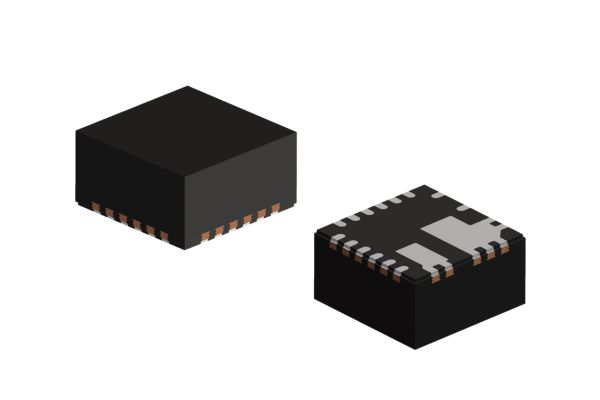

- Thermally enhanced and space saving 4 mm × 4 mm × 2.1 mm wettable flank QFN package
- 28 μA no-load quiescent current (48 VIN to 12 VOUT)
- 2.15 MHz internally fixed and adjustable from 400 kHz to 2.4 MHz
