3D Magnetic Hall-Effect Sensor for Rotary and Linear Position Measurement

A31315

Meet stringent requirements of safety-critical automotive applications with our 3DMag position sensors.

Download Datasheet

Evaluation Board

Product Details

Top Features

3D Hall-effect magnetic sensor for absolute rotary and linear position sensing applications
On-chip angle calculation with configurable signal path and flexibility linearization enables customers to achieve the most stringent accuracy requirements while minimizing end of line programming time.
- Piecewise-linear and binning modes
- Up to 33-point fixed position
- Up to 22-point programmable positions

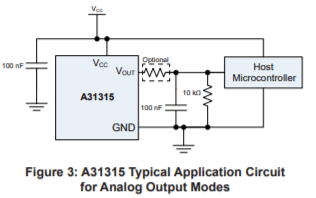

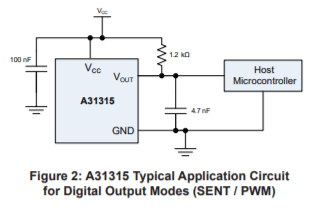

Supports SENT (SAE J2716), PWM, and Ratiometric Analog output interface options

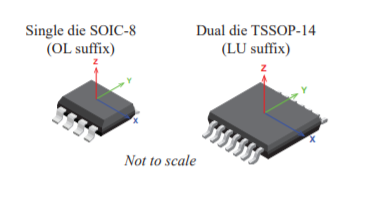

Developed in accordance with ISO 26262 as a hardware safety element out of context (SEooC) with single die ASIL B and dual die ASIL D capability (pending assessment)
AEC-Q100 Grade 0 qualified supports operation in harsh conditions, required for automotive and industrial applications

Part Number Specifications and Availability

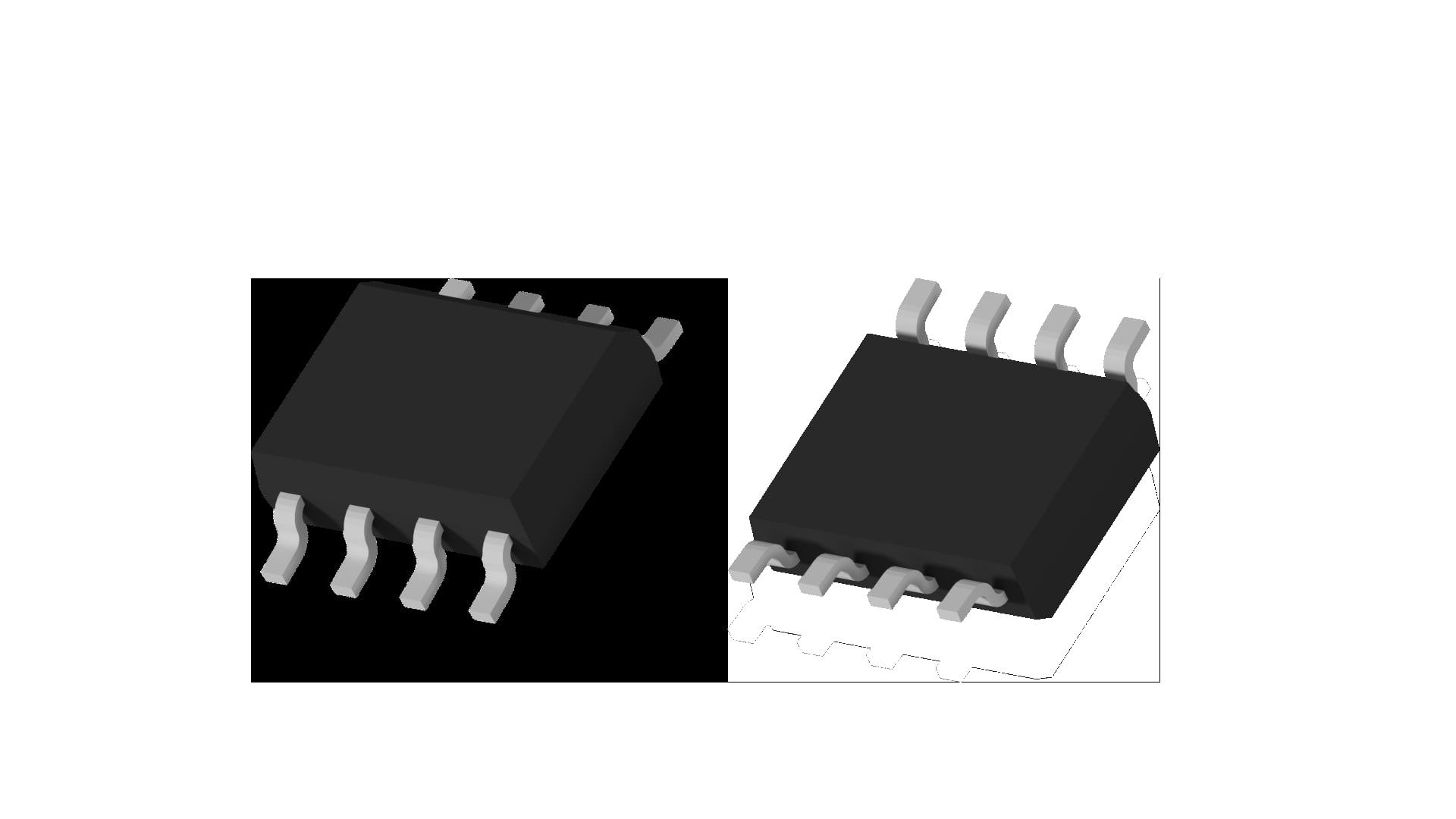

A31315 Product Overview

The A31315 is a robust, fully integrated 3DMAG™ Hall-effect magnetic position sensor IC designed to support a wide range of non-contact rotary and linear position measurement in the automotive, industrial and consumer applications.
