1 MHz, High Precision XtremeSense TMR Isolated Current Sensor in SOIC-8 Package
CT425-8
Product Details
Product Details
Top Features
- CT425 & CT428 (5.0 V version), CT426 & CT427 (3.3 V version)
- Integrated 0.5 mΩ Conductor
- Total Error Output: ±0.5% FS (typ.)
- 300 ns Response Time, 1 MHz Bandwidth
- Noise as Low as 9 mARMS
- Immunity to Common Mode Field: -54 dB
- Rated Isolation Voltage: >4 kVRMS
- UL/IEC 62368-1 and UL1577 Certification
- IEC 61000-4-5 Certified
- AC or DC Current Range:
- +20.0 ADC / ±20.0 APK
- +30.0 ADC / ±30.0 APK
- +50.0 ADC / ±50.0 APK
- +65.0 ADC / ±65.0 APK
- Pin #6 Functionality

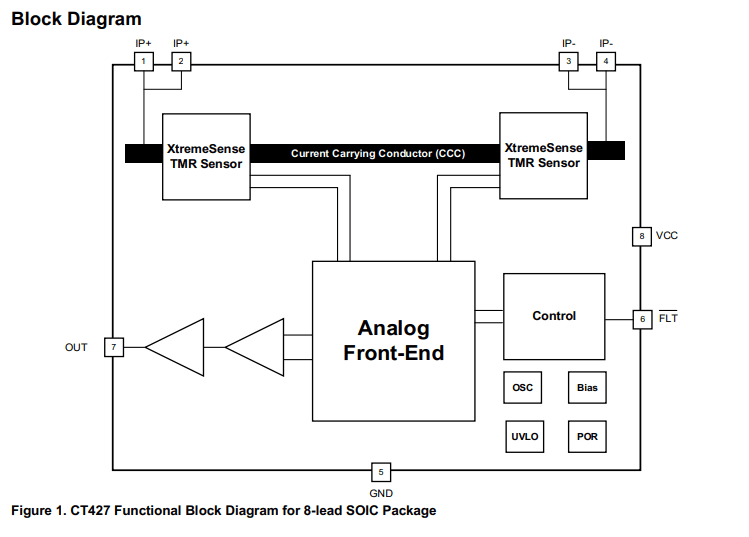

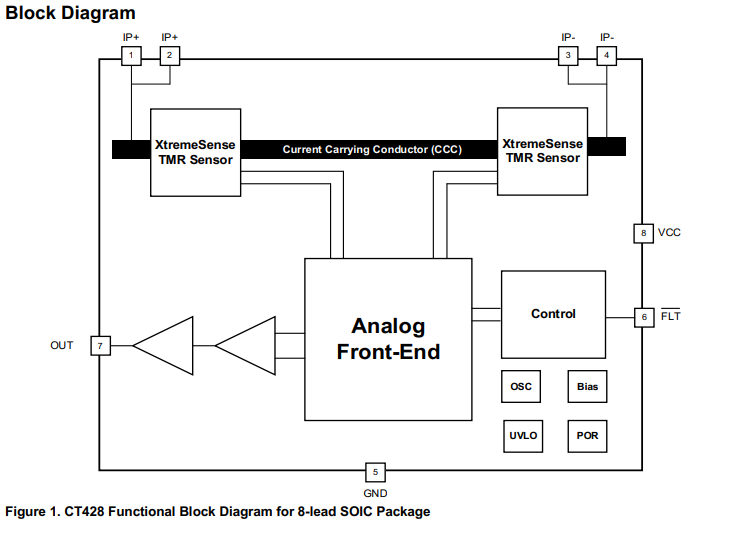

- CT427 & CT248: Over-Current Detection Output Pin

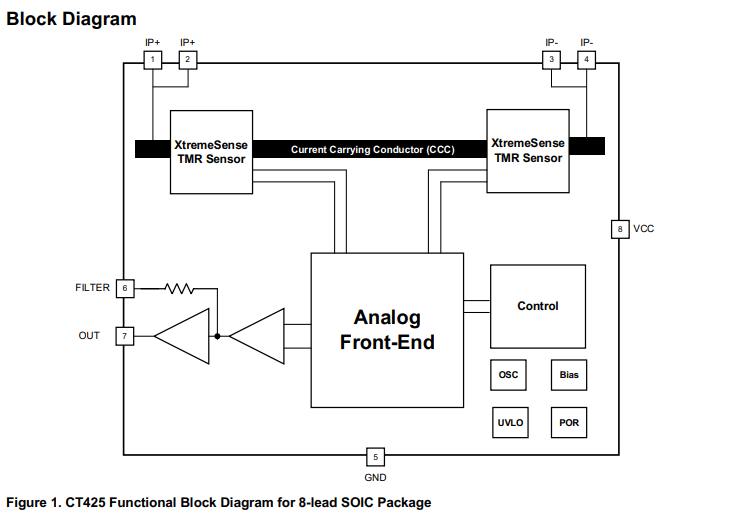

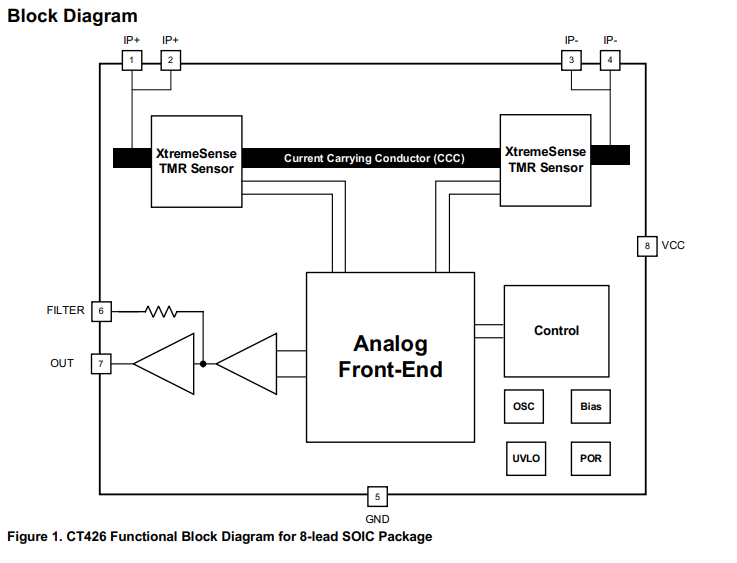

- CT425 & CT426: Enhanced Filter to Lower Noise
