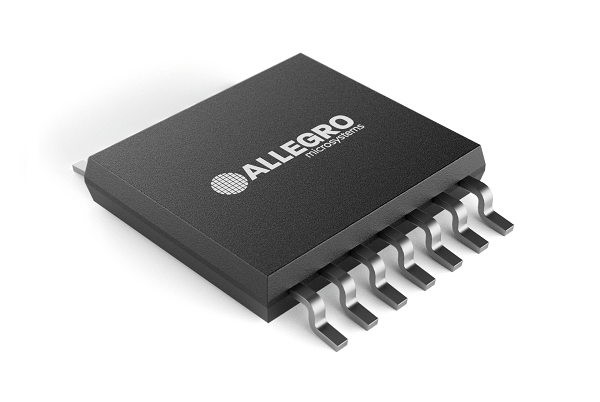

The A17802 IC is an inductive position sensor designed to measure the rotational angle of a metallic target and deliver the information over a digital output or a differential sine and cosine analog interface.
Product Details
Product Details
Top Features
- Measures angle with <0.5°el accuracy at speeds up to 250k eRPM
- Automatic TX and RX optimization at each power-up
- Harmonic compensation reduces error by up to 3x
- Synchronization compensation perfects commutation timing for efficient motor control
- Programmable zero angle enables arbitrary target alignment
- Programmable via SPI or Manchester Protocol
- Developed in accordance with ISO 26262:2018 ASIL C(D) (pending assessment)
