The APS11753 Micropower Hall-effect switch ICs are offered with and without AEC-Q100 qualification for low-voltage applications in Automotive, Industrial and Consumer Applications.
Product Details
Product Details
Top Features
- 2.2 to 5.5V operation
- Ultra-low power consumption (micropower)
- AEC-Q100 qualified
- Omnipolar and unipolar switch threshold options
- Sleep time options
- High and low sensitivity magnetic switch point options
- Choice of output polarity
- Chopper stabilization
- Low switch point drift over temperature
- Insensitive to physical stress
- Push-pull output
- Solid-state reliability

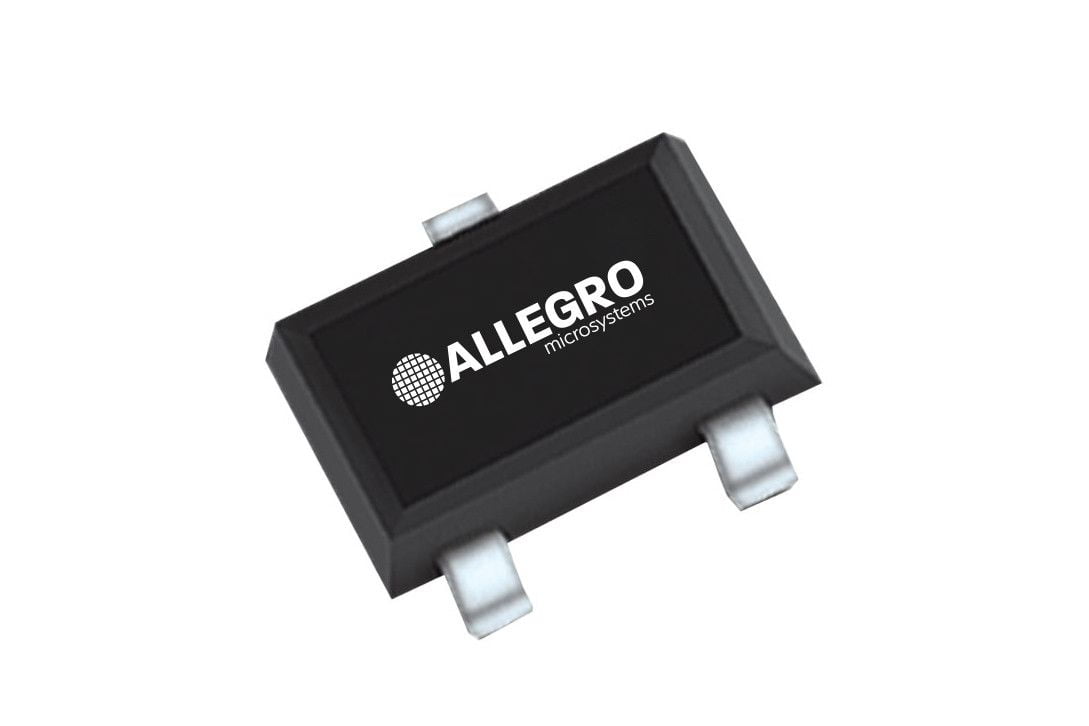

- Industry-standard package and pinout
