電子油圧ブレーキ

電子油圧式ブレーキ アーキテクチャは、真空ブースターを使用する従来の方法とは異なり、電子ブレーキ ブースターを利用してハイブリッド車や電気自動車のブレーキのパワーを増幅させます。 これらの電子ブレーキ システムは、回生ブレーキや高度な自動運転機能も可能にします。



当社の電子油圧ブレーキ ソリューションは、緊急時のブレーキの素早い反応を可能にし、さらに、アダプティブ クルーズ コントロールのような自動運転のケースでスムーズなハンドル操作を実現します。

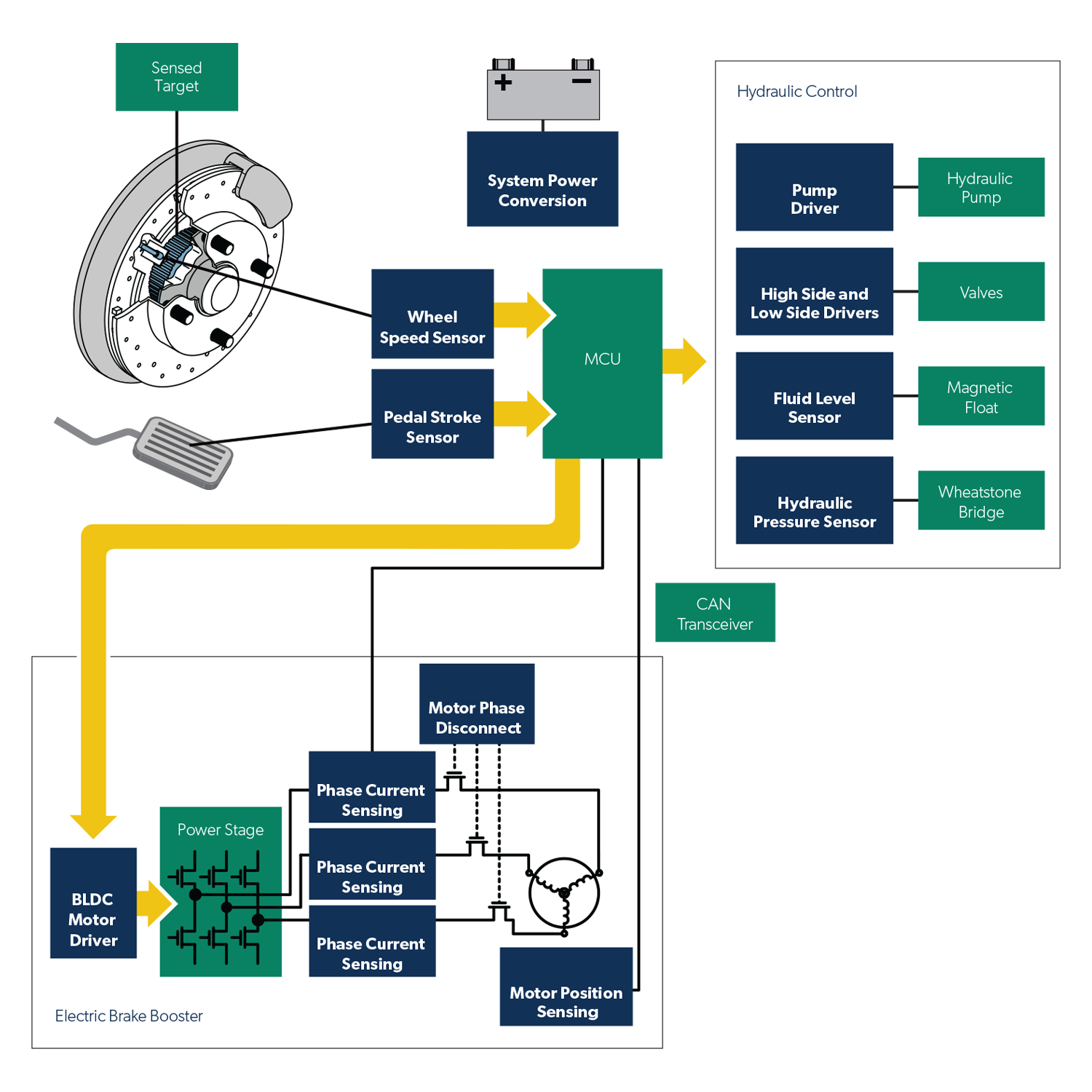

Electrohydraulic Braking Block Diagram
  • More

    System Power Conversion

    ARG81402 – Multi-Output Regulator with Buck Pre-Regulator

    A81407 – Buck or Buck-Boost Pre-Regulator

    ARG82801 – Fully Integrated PMIC plus for 4x High Side Gate Drivers

    Close
  • More

    Wheel Speed Sensor

    A19350 – GMR Speed and Direction Sensor

    A19250 – GMR Speed Sensor

    A19360 – High Resolution GMR Speed and Direction Sensor

    ATS19200 – Hall Speed Sensor

    Close
  • More

    Pedal Stroke Sensor

    A31315 – 3D Magnetic Position Sensor IC


    Close
  • More

    BLDC Motor Driver

    A4911 – Three-Phase MOSFET Driver for 12 or 24V Systems

    A4916 – Three-Phase MOSFET Driver for 12 or 24V Systems

    A4918 – Three-Phase MOSFET Driver for 12 or 24V Systems

    AMT49106 and AMT49107 – 50V BLDC Gate Drivers with Low Voltage Operation

    AMT49100/1 – Three-Phase MOSFET Driver for 48V System

     A89500 – Half Bridge Driver for 12, 24, or 48V systems
    Close
  • More

    Phase Current Sensing

    ACS72981 – 0 to 200 A Integrated Conductor Current Sensor

    Close
  • More

    Phase Current Sensing

    ACS72981 – 0 to 200 A Integrated Conductor Current Sensor

    Close
  • More

    Phase Current Sensing

    ACS72981 – 0 to 200 A Integrated Conductor Current Sensor

    Close
  • More

    Motor Phase Disconnect

    A6861 – Three-Phase Isolator MOSFET Driver

    A6862 – Three-Phase Isolator MOSFET Driver

    A81407 – Buck or Buck-Boost Pre-Regulator

    ARG82801 – Fully Integrated PMIC plus for 4x High Side Gate Drivers

    Close
  • More

    Motor Position Sensing

    A33023 – Stray Field Immune Angle Sensor
    A33115 – Precision TMR Angle Sensor
     CT310 – 2D TMR Angular Sensor
     Close
  • More

    Pump Driver

    A4916 – Three-Phase MOSFET Driver for 12 or 24V Systems
    A4918 – Three-Phase MOSFET Driver for 12 or 24V Systems
     Close
  • More

    High Side and Low Side Drivers

    A3942 – 4 Channel High-Side Gate Driver

    A3944 – 6 Channel High-Side Gate Driver

    Close
  • More

    Fluid Level Sensor

    APS11500 – Two-Wire Hall Effect Switch

    Close
  • More

    Hydraulic Pressure Sensor

    A17700 – Pressure Sensor Interface IC (Piezo Resistive)

    Close
